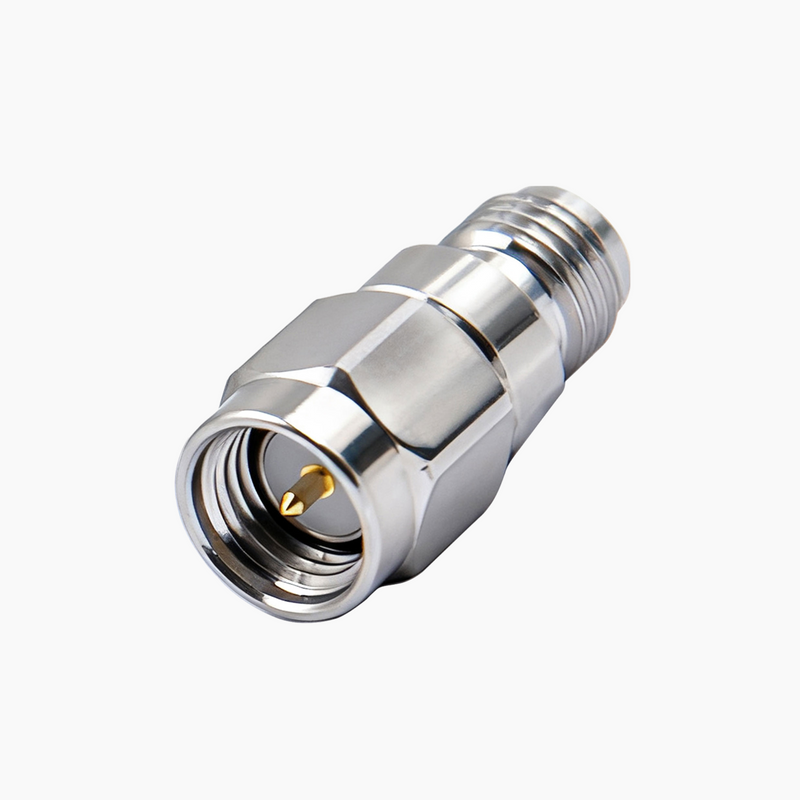

DC-27GHz SMA Male - SMA Female‬ Adapter‬
DC-27GHz SMA Male - SMA Female‬ Adapter‬

DC-27GHz SMA Male - SMA Female‬ Adapter‬

SKU A27G-SMAMF-02
Availability:
Only 5 left!
Availability:
Only 5 left!
$56.00 - $156.00
$56.00
$56.00 - $156.00
$56.00

Ultra Wideband: DC-27GHz

Low VSWR: 1.15:1 max

Low Insertion Loss: 0.25dB max

Long Durability: >1000 Cycles

Ordering 50+ pieces?

Contact us for volume pricing.

Pack Sizes: 2 Pack

PRODUCT OVERVIEW

The SMA Male to SMA Female Coaxial Adapter is engineered for DC to 27GHz applications, offering low insertion loss (0.25dB max) and 1.05:1 typ or 1.15:1 max VSWR for superior signal integrity. Designed for high-frequency lab testing, telecom systems, and precision RF applications, this adapter ensures stable and repeatable performance. Constructed from reinforced stainless steel, it withstands >1000 mating cycles, making it a long-lasting, high-precision solution.


SPECIFICATIONS

Frequency Range

DC-27GHz

VSWR

1.05:1 typ / 1.15:1 max

Insertion Loss

0.25dB max

Durability

>1000 Cycles min

Insulation Resistance

>5000 MΩ min

Operating Temperature

-65°C ~ +165°C

Body Material

Stainless Steel Passivated

Center Conductor

Gold-Plated Beryllium Copper

Dielectric

PTFE


APPLICATIONS

RF Testing & Development.

Ensures precise signal integrity for high-frequency measurements.

Telecom & Wireless Networks

Enables reliable high-speed data transmission and optimized signal routing in communication infrastructure.

Medical & Precision RF Devices

Supports sensitive RF applications requiring high accuracy.
