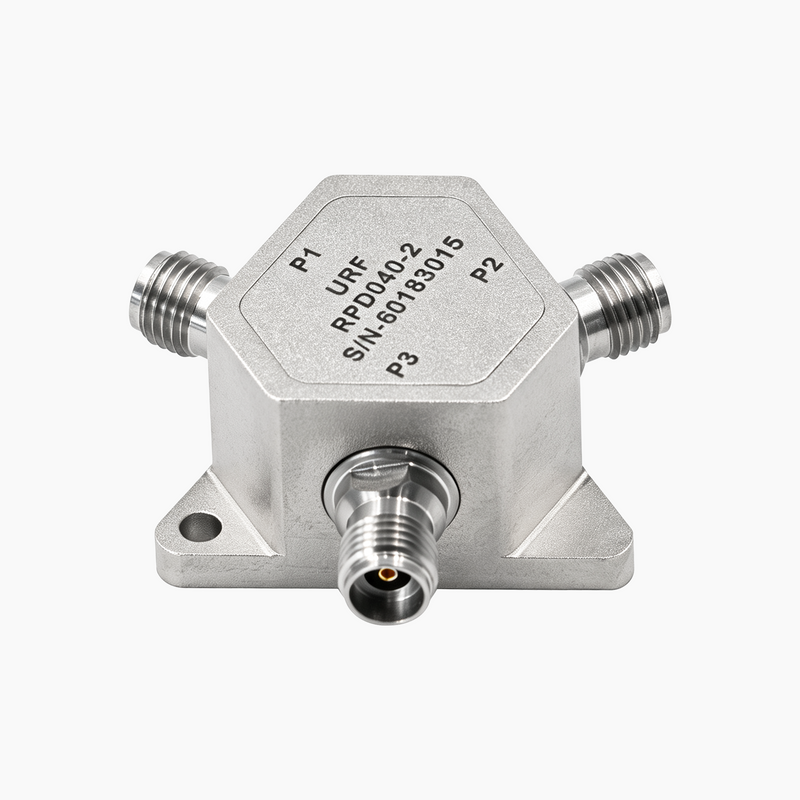

2-Way Resistive Power Divider, 2.92mm Female, DC to 40GHz

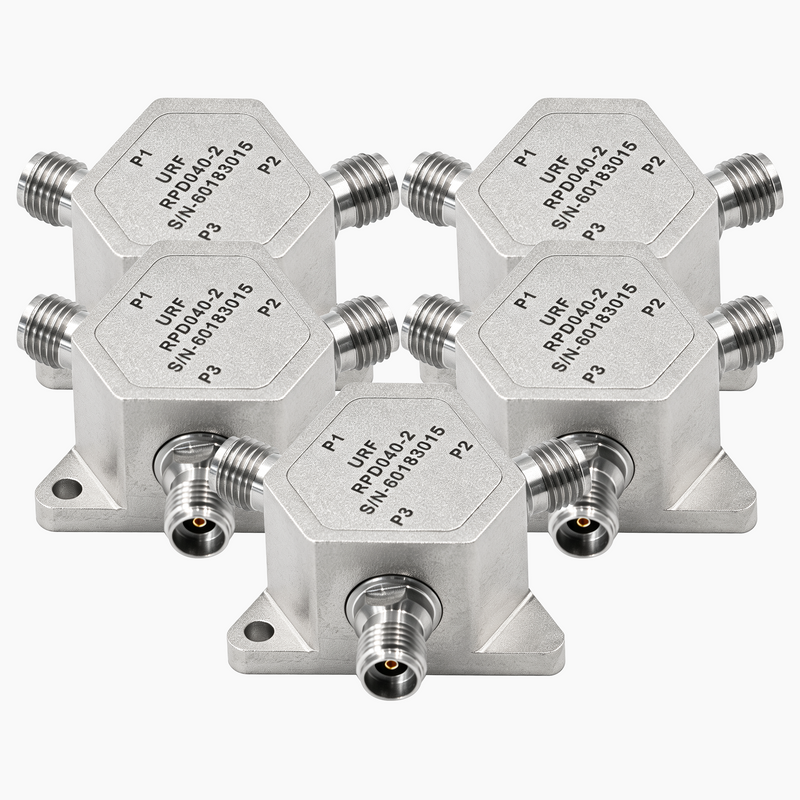

2-Way Resistive Power Divider, 2.92mm Female, DC to 40GHz, 5 Pack
2-Way Resistive Power Divider, 2.92mm Female, DC to 40GHz
2-Way Resistive Power Divider, 2.92mm Female, DC to 40GHz, 5 Pack

2-Way Resistive Power Divider, DC-40 GHz, 2.92mm Female

SKU RPD040-2
Availability:
Only 5 left!
Availability:
Only 2 left!
$750.00 - $3,640.00
$750.00
$750.00 - $3,640.00
$750.00

Low VSWR: 1.25:1 max

Amplitude Unbalance: ±0.4 dB max

Phase Unbalance: ±4° max

Power: 1 W max

Ordering 50+ pieces?

Contact us for volume pricing.

Pack Size: 1 Pack

WHY CHOOSE THIS POWER DIVIDER?

  • ✔ True DC-40GHz Coverage – A single resistive divider spans DC all the way to 40GHz, into mmWave territory, without swapping hardware between bands.
  • ✔ Low VSWR – 1.25:1 max holds signal reflection to a minimum across the full 40GHz span.
  • ✔ Flat Amplitude & Phase Balance – ±0.4dB amplitude and ±4° phase unbalance keep both output ports consistent even at the top of the band.
  • ✔ Compact, Rugged Build – Nickel-plated housing at just 55g, rated -40°C to +70°C for lab and field use.

PRODUCT OVERVIEW

The 2-Way Resistive Power Divider, DC-40GHz, 2.92mm Female (RPD040-2) extends true broadband signal splitting into mmWave frequencies in a single part. Flat balance (±0.4dB, ±4°), and low VSWR (1.25:1 max) make it a fit for mmWave test, 5G FR2, and Ka-band SATCOM.

Need only up to 20GHz with standard SMA? See the RPD020-2.


SPECIFICATIONS

Frequency Range

DC to 40 GHz

VSWR

1.25:1 max

Insertion Loss¹

7 dB max

Amp. Unbalance

±0.4 dB max

Phase Unbalance

±4° max

Power²

1 W max

Weight

55 g max

Dimension³

26.5 mm x 30.0 mm x 16.5 mm (LxWxH)

Interface

2.92mm [F]

Finishing

Nickel Plating

Operating Temperature

-40 ~ +70°C

Storage Temperature

-55 ~ +85°C

  1. Above Theoretical Loss 6 dB
  2. VSWR ≤1.2 required for CW
  3. Unless otherwise specified, Decimal tolerance: x.±1; .x±0.5; .xx±0.1

APPLICATIONS

mmWave & 5G FR2 Test

Delivers flat, repeatable signal splitting into mmWave frequencies for 5G FR2 test benches and RF instrumentation up to 40GHz.

Ka-Band SATCOM

Supports satellite communication systems operating in Ka-band, where a single broadband divider simplifies signal chains that would otherwise need multiple narrowband parts.

Broadband Radar

Provides low-reflection power division for radar systems requiring wide instantaneous bandwidth into the mmWave range.
