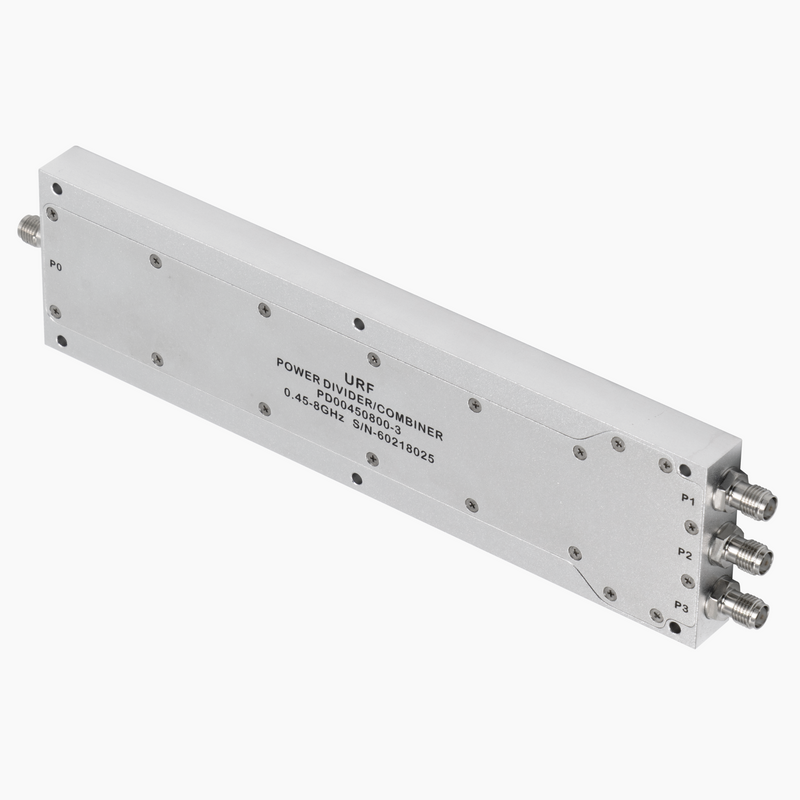

3-Way Power Divider/Combiner, SMA Female, 0.45 to 8GHz

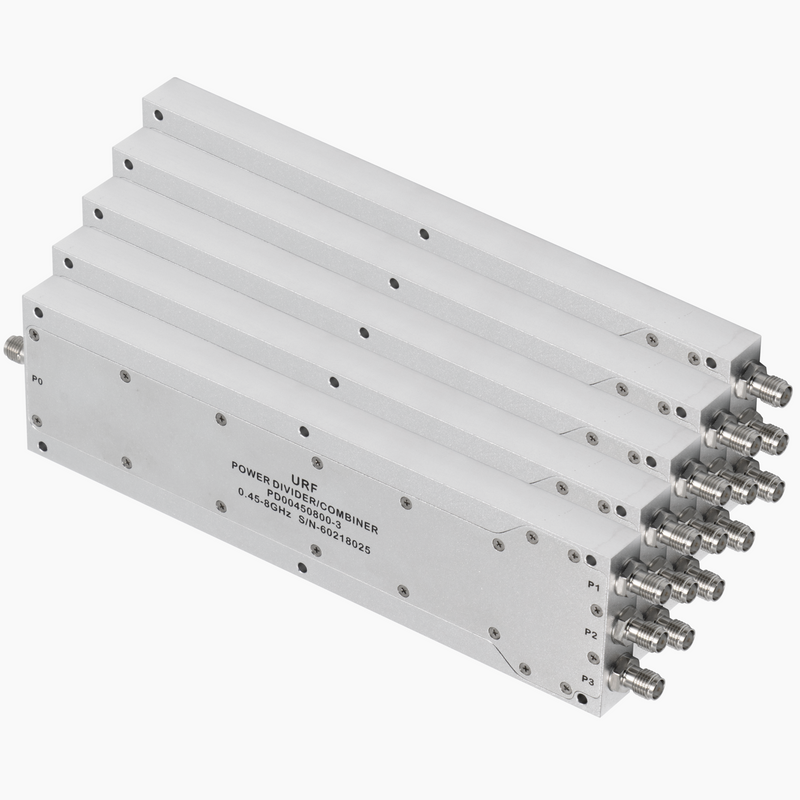

3-Way Power Divider/Combiner, SMA Female, 0.45 to 8GHz, 5 Pack
3-Way Power Divider/Combiner, SMA Female, 0.45 to 8GHz
3-Way Power Divider/Combiner, SMA Female, 0.45 to 8GHz, 5 Pack

3-Way Power Divider/Combiner, 0.45-8GHz, SMA Female

SKU PD00450800-3
Availability:
Only 5 left!
Availability:
Only 2 left!
$420.00 - $1,995.00
$420.00
$420.00 - $1,995.00
$420.00

Low VSWR: 1.50:1 max

Low Insertion Loss: 2 dB max

High Isolation: 17 dB min

Amplitude Unbalance: ±0.5 dB max

Phase Unbalance: ±8° max

Power: 20 W CW FWD, 1 W REV, 150 W peak max

Ordering 50+ pieces?

Contact us for volume pricing.

Pack Size: 1 Pack

WHY CHOOSE THIS POWER DIVIDER?

  • ✔ Broad Frequency Range – 0.45 to 8GHz for versatile RF applications.
  • ✔ Low Insertion Loss – 2dB max for efficient power transfer.
  • ✔ Optimized Matching – 1.15:1 typ and 1.50:1 max for minimal signal reflection.
  • ✔ High Isolation – 17dB min reduces interference.
  • ✔ Precision Balance – Amplitude unbalance of ±0.5dB max, phase unbalance of ±8° max for accurate performance across all ports.
  • ✔ Reliable Power Handling – Supports 20W CW, 1W reverse, 150W peak for demanding use cases.

PRODUCT OVERVIEW

The 3-Way Power Divider/Combiner, 0.45-8GHz, SMA Female ensures stable signal splitting with low insertion loss (2 dB max), high isolation (17 dB min), and low VSWR (1.50:1 max). Designed for 20W CW, 1W reverse, 150W peak handling, it delivers reliable performance across various RF applications, ensuring highly similar amplitude & phase unbalance across all ports for precise signal consistency. Built for durability, this divider ensures consistent signal distribution in both lab and field environments.


SPECIFICATIONS

Frequency Range

0.45 – 8 GHz

Sum VSWR

1.15:1 typ/1.50:1 max

Distri. VSWR

1.15:1 typ/1.40:1 max

Insertion Loss¹

2 dB max

Amp. Unbalance

±0.5 dB max

Phase Unbalance

±8° max

Isolation

17 dB min

Power²

CW: FOR 20 W, REV 1 W; Peak: 150 W

Weight

195 g max

Dimension³

165.1 mm x 43.8 mm x 12 mm (LxWxH)

Interface

Sum: SMA [F], Distri.: SMA [F]

Finishing

Sand Blast

Operating Temperature

-40 ~ +70°C

Storage Temperature

-55 ~ +85°C

  1. Above Theoretical Loss 4.8 dB
  2. VSWR ≤1.2 required for CW; Amp. & phase unbalance required for reversed input signals
  3. Unless otherwise specified, Decimal tolerance: x.±1; .x±0.5; .xx±0.1

APPLICATIONS

Testing & Measurement

Ensures accurate signal distribution in test setups.

Wireless Communication

Supports stable signal splitting for telecom and 5G applications.

Radar & Defense Systems

Enables efficient and consistent power division for radar arrays and defense electronics.
