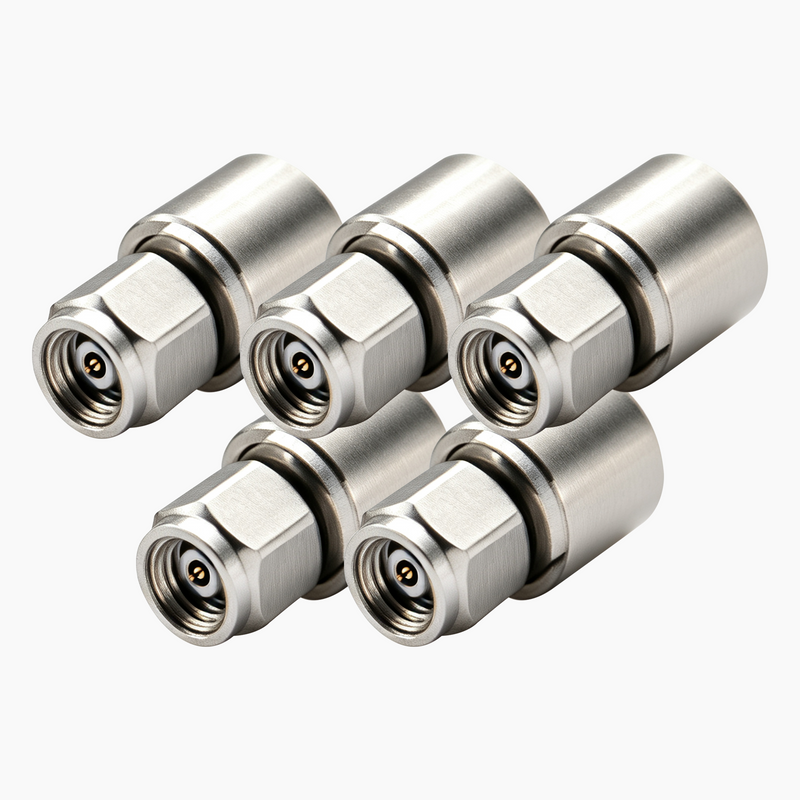

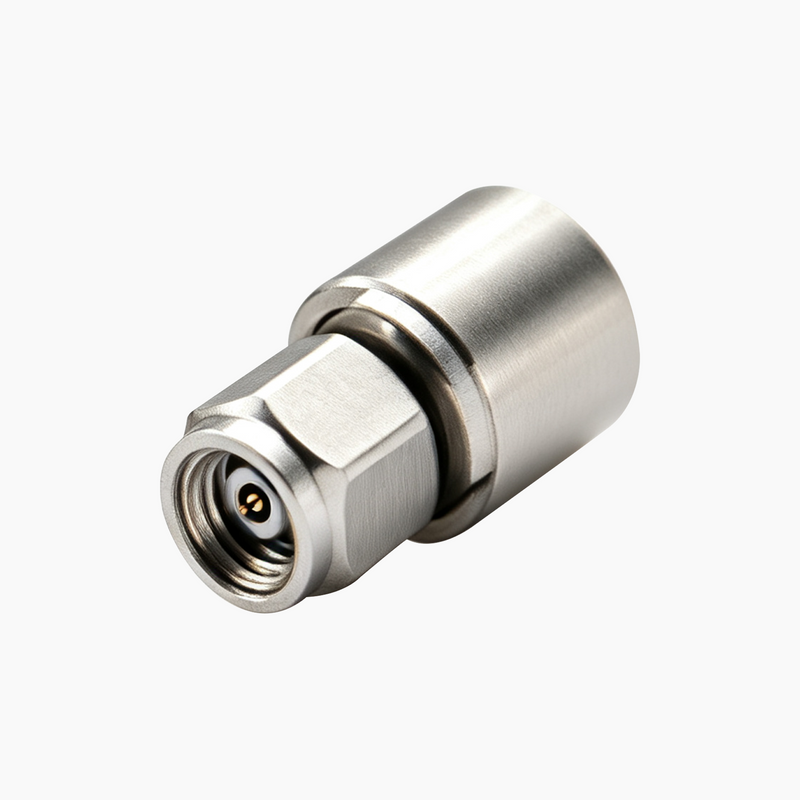

1.0mm Male Coaxial Termination, DC-110GHz, 1W
1.0mm Male Coaxial Termination, DC-110GHz, 1W

1.0mm Male Coaxial Termination, DC-110GHz, 1W

SKU T110G-1W-10M
Availability:
10 in stock, ready to be shipped
Availability:
Only 1 left!
$1,495.00 - $7,175.00
$1,495.00
$1,495.00 - $7,175.00
$1,495.00

Excellent VSWR: 1.20:1 typ / 1.45:1 max

Power: ≤1W

Durability: >500 Cycles

Operating Temperature: -55°C ~+85°C

Large quantity orders?

Contact us for volume pricing.

Pack Size: 1 Pack

WHY CHOOSE THIS TERMINATION?

  • ✔ Coverage to 110 GHz – The 1.0 mm interface carries a proper 50 Ω load well past where 1.85 mm connectors stop.
  • ✔ Solid Match, Full Band – 1.20:1 typical VSWR, with 1.45:1 max across the full range.
  • ✔ Built for Repeated Mating – Passivated stainless steel, rated for at least 500 connection cycles.

PRODUCT OVERVIEW

The URF T110G series comprises two 1.0 mm male coaxial terminations designed for broadband applications from DC to 110 GHz. Both models combine 1 W CW power handling, compact construction, and a wide operating temperature range. This standard model provides a maximum VSWR of 1.45:1.

RoHS Compliance: Compliant

For applications requiring lower reflection and reduced mismatch uncertainty, see the T110G-1W-10M-S with 1.30:1 max VSWR.


SPECIFICATIONS

Frequency Range

DC–110 GHz

VSWR

1.20:1 typ / 1.45:1 max

Impedance

50 Ω

Power

1 W CW max. at +25°C

Durability

≥500 Cycles

Weight

≤4 g

Dimension¹

Φ8 × 15.2 mm

Interface

1.0 mm [M]

Outer Conductor

Stainless Steel, Passivated

Center Conductor

Gold-Plated Beryllium Copper

Dielectric

PEI

Operating Temperature

–55 ~ +85°C

RoHS Compliance

Compliant

Notes: Maximum VSWR values are guaranteed specifications. Typical plots are representative and are not guaranteed. Specifications are subject to change without notice.
¹ Unless otherwise specified, decimal dimensional tolerance is ±0.3 mm.


APPLICATIONS

Automotive Radar Test

Terminates unused ports on radar transceivers and front-end modules during bench and production test, where 1.85 mm connectors no longer reach.

E-Band and W-Band System Integration

Loads unused ports on switches, dividers, and multiport assemblies in backhaul radios and millimeter-wave subsystems.

Probe Station and VNA Setups

Terminates idle 1.0 mm cables, adapters, and test ports in on-wafer and bench setups, preventing stray reflections between measurements.
